Checking Wifi-Aline Boresight

The wifi-Aline is carefully boresighted with a laser so the center of rotation in the image corresponds to the optical axis along which to collimate the secondary and primary mirrors.

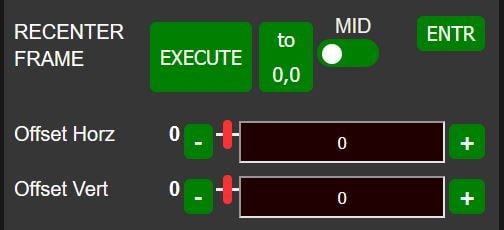

The Collimation Controls provides a RECENTER FRAME function should boresight ever need adjusting  The RECENTER FRAME function is NOT used for collimation.

A picture containing text, clock, vector graphics  Description automatically generated











EXECUTE: when pressed, will show a confirmation popup to prevent accidentally changing the boresight.

to 0,0: Sets horiz/vert offsets back to 0,0 the sensor frame center.  It will show a confirmation popup to prevent accidently invoking.

MID: Quick pick the center for a ring.  Slide to right, use mouse pointer in the image to pick center, Press ENTR

Note, MID always references horiz/vert from the camera frame center (0,0)  NOT from the last offset horiz/vert position displayed.

Offset Horz: Manually tweak center of frame position left/right

Offset Vert:  Manually tweak center of frame  position up/down in frame.

Graphical user interface, application  Description automatically generated

Steps for Checking Boresight

  1. Set up a target – a sheet of white paper will do.

  2. Make a black dot about 1” diameter on a Post-It note (or equivalent) and stick it on the target.

A picture containing text  Description automatically generated



  1. Place  a 2” eyepiece holder in a clamp, insert the wifi-Aline and point it at the target from 5 meters (16 feet).



A picture containing floor, indoor, black, leather  Description automatically generated



  1. Bring up the wifi-Aline as normal and START STREAM.

  2.   While viewing the image of the target in a tablet or phone, move the post-it note until the black dot is on the red crosshair.

    Yes the image may be upside down or otherwise rotated. 😊

  3. Use GET STILL to capture a still image and save the image on your computer.



A picture containing text, indoor  Description automatically generated



  1. Rotate the wifi-Aline 90 degrees and Use GET STILL to capture another still image and save the image on your computer.

A picture containing indoor, appliance, kitchen appliance  Description automatically generated



  1. Rotate the wifi-Aline another 90 degrees and Use GET STILL to capture another still image and save the image on your computer.

Diagram, engineering drawing  Description automatically generated



  1. Rotate the wifi-Aline another 90 degrees and Use GET STILL to capture another still image and save the image on your computer.

Diagram, engineering drawing  Description automatically generated



  1. Compare the images, they may rotate around a point a bit outside the black spot (the “actual boresight”) and you can move the black spot to that center of rotation.

    Making an animated GIF from the 4 images (using one of the many free GIF makers on the internet) can be helpful in identifying the location of the “actual boresight”

  2. Repeat the steps above to recheck,

Diagram, engineering drawing  Description automatically generated

Steps for Adjusting Boresight

  1. START wifi-Aline image stream

  2. Use MID to select initial offset and press ENTR

  3. Press EXECUTE

  4. Wait for recenter to take effect (within 3 frames) and examine position of Red Crosshair.
  1. Adjust horizontal and vertical offsets using +/- buttons

  2. Press EXECUTE

  3. Wait for recenter to take effect (within 3 frames) and examine position of Red Crosshair

  4. Repeat steps 5,6 as needed.

  5. Press SAVE at top of wifi-Aline menus to make the preference permanent.



Graphical user interface, application  Description automatically generated



Diagram  Description automatically generated with medium confidence
