wifi-Aline
wireless video collimation tool

The wifi-Aline enhances the accurate collimation of Dobsonian and Newtonian telescopes by sending a real-time video stream of the telescope optics wirelessly to your tablet, phone or computer’s display.    The wifi-Aline does not require any additional apps, applications, or other software downloads for use on computers, tablets or phones.    The wifi-Aline’s powerful ESP32 processor wirelessly serves up webpages to Safari, Edge, Firefox, or Chrome web browser on your computer, tablet, or phone for complete control of all wifi-Aline functions and viewing the real-time video stream of your telescope’s optical elements.

The wifi-Aline is carefully boresighted so the center of rotation in the image corresponds to the optical axis along which to collimate the secondary and primary mirrors to better than 0.02 degrees.

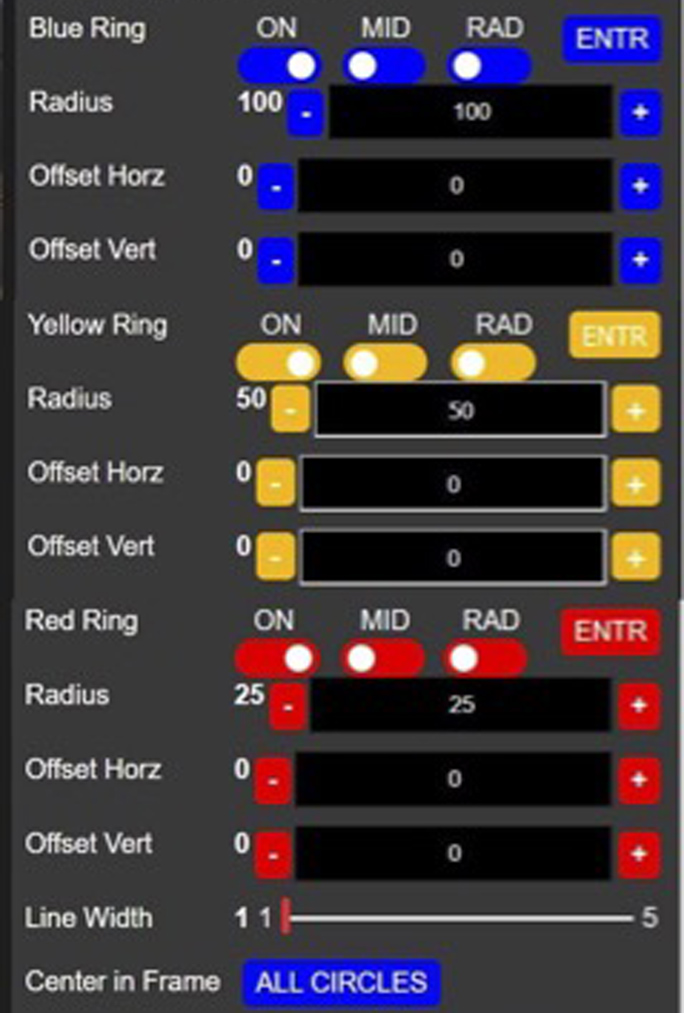

As an additional assist, wifi-Aline superimposes 3 coaxial target rings and a crosshair that, once carefully offset to align with the primary mirror edge, guide the collimation adjustments for the secondary and other optical elements to bring them into accurate collimation with the primary mirror.

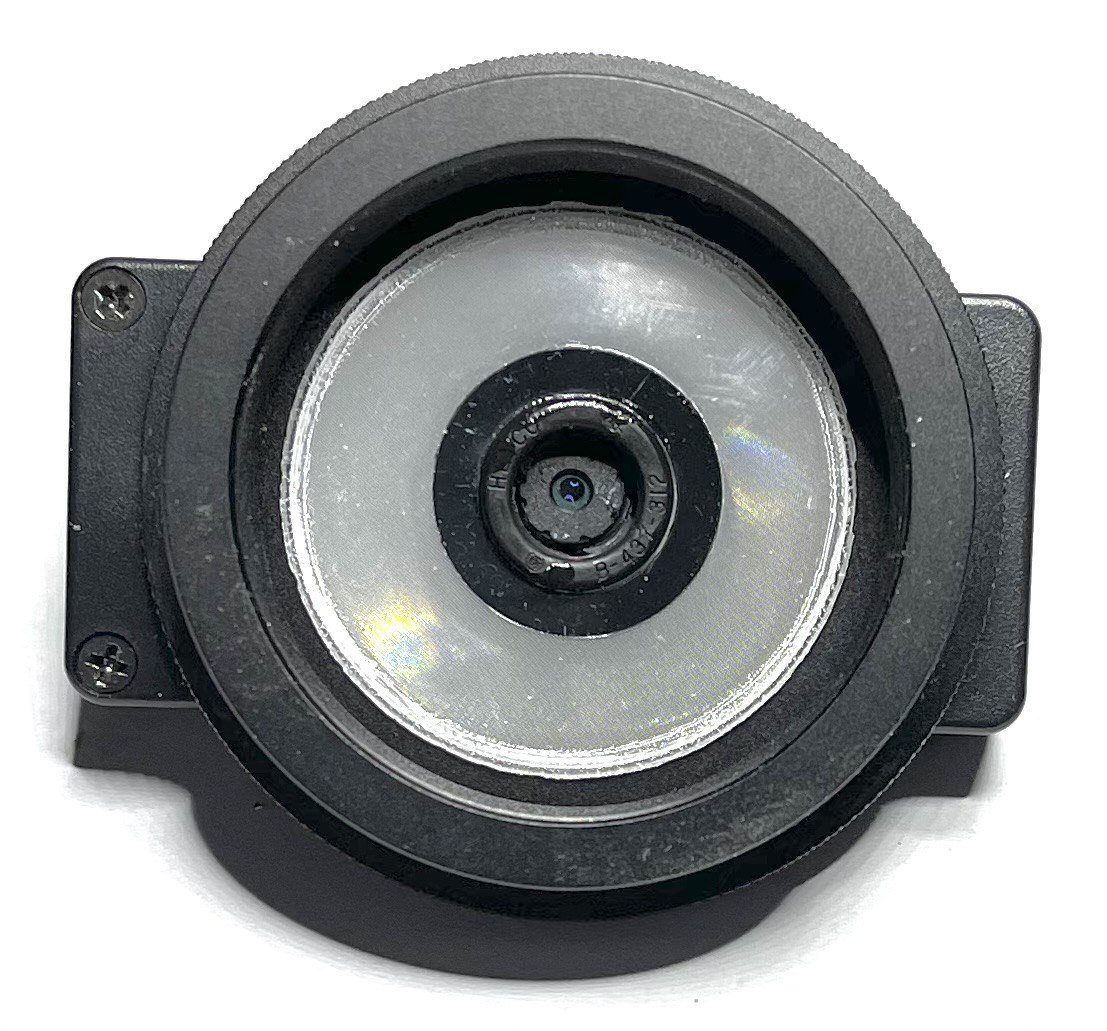

The  wifi-Aline internally surrounds the camera lens with an ultra bright micro-prism retro-reflector, lit by the light gathered by your primary to brightly delineate the centerline of your optics. Focus can be adjusted by screwing the lens in/out.
